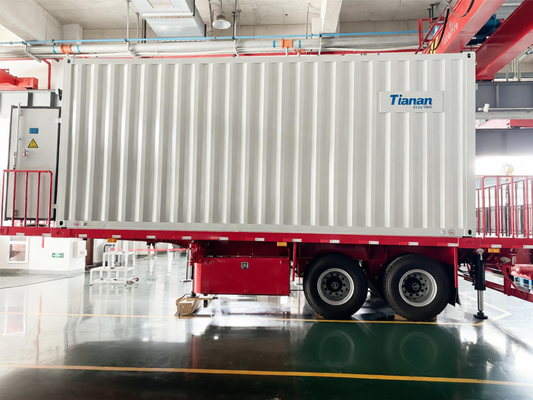

Wind speed 40 meters per second Mobile Transformer Substation featuring rated short circuit breaking current 40 KA and humidity tolerance up to 95 percent

Product Description:

The Mobile Transformer Substation, also known as the On Wheels Transformer Station, is an advanced and highly reliable solution designed to meet the dynamic power distribution needs in various industrial, commercial, and emergency applications. Engineered with versatility and mobility in mind, this On Wheels Transformer Station provides a seamless integration of high-performance electrical components within a compact, transportable unit that can be rapidly deployed wherever power transformation and distribution are required.

This On Wheels Transformer Station is designed to operate efficiently across a wide range of rated voltages on the low voltage (LV) side, including 6.6 kV, 11 kV, 13.8 kV, 22 kV, 33 kV, and 35 kV. Such flexibility allows it to cater to diverse electrical systems and grid requirements, ensuring compatibility and ease of integration into existing infrastructures. The transformer substation adheres strictly to the IEC-60076 standard, guaranteeing that all components meet international quality, safety, and performance benchmarks. This compliance ensures optimal reliability and longevity, even under demanding operational conditions.

One of the most remarkable features of this Mobile Transformer Substation is its robust design capable of withstanding environmental challenges. It has been rigorously tested to endure wind speeds up to 40 meters per second, providing resilience against harsh weather conditions such as strong winds and storms. Additionally, the station is built to tolerate solar radiation levels of up to 1000 W/m², which ensures that the equipment maintains stable performance and thermal management even under intense sunlight exposure. These attributes make it an ideal choice for deployment in a wide range of geographical locations, from urban centers to remote or harsh environments.

The rated current capacity on the LV side of the transformer station is available in multiple configurations, including 1250 A, 2000 A, 2500 A, and 3150 A. This range allows users to select the most appropriate current rating to meet their specific load requirements, optimizing efficiency and minimizing energy losses. The availability of different current ratings also facilitates scalability, enabling the transformer substation to adapt to evolving power demands without requiring extensive modifications.

Designed for mobility and ease of deployment, the On Wheels Transformer Station is mounted on a robust wheeled chassis that allows for quick transportation and installation. This mobility feature is particularly beneficial in emergency situations, temporary power supply needs, or construction sites where rapid setup and relocation are essential. The compact design ensures that the station occupies minimal space while providing maximum electrical performance and safety. Furthermore, the modular construction simplifies maintenance and upgrades, reducing downtime and operational costs.

In summary, the Mobile Transformer Substation represents an innovative and practical solution for modern power distribution challenges. Its compliance with IEC-60076 standards, wide range of rated voltages and currents, and resilience to environmental factors such as high wind speeds and intense solar radiation make it a dependable choice for various applications. The mobility offered by the On Wheels Transformer Station design ensures flexibility and rapid response capabilities, making it indispensable for both planned and emergency power needs. Organizations seeking a versatile, reliable, and high-performance transformer substation will find this product to be an excellent investment in ensuring continuous and efficient power supply.

Features:

• Mobile Transformer Substation designed as an On Wheels Transformer Station for easy transport and installation
• Withstands solar radiation up to 1000 W/m² ensuring durability under intense sunlight
• Operates reliably in wind speeds up to 40 m/s, suitable for harsh weather conditions
• Rated current on HV side options: 630, 1250, 2000 A for flexible application needs
• Rated current on LV side options: 1250, 2000, 2500, 3150 A to accommodate various power requirements
• Complies with international quality and safety standards IEC-60076
• As an On Wheels Transformer Station, it offers mobility and convenience for temporary or permanent installations
• Robust design of the On Wheels Transformer Station ensures reliable performance in diverse environments

Technical Parameters:

Applications:

The Vehicle Mounted Mobile Substation, model CZBT1, is an advanced On Wheels Transformer Station designed and manufactured in CHINA. Certified under IEC&GB standards and adhering to the IEC-60076 product standards, this mobile transformer substation offers unparalleled flexibility and reliability for a wide range of power distribution applications. Its robust design supports rated voltages on the LV side of 6.6, 11, 13.8, 22, 33, and 35 KV, with main transformer capacities ranging from 5 MVA to 50 MVA, making it suitable for diverse operational demands.

This On Wheels Transformer Station is ideal for emergency power restoration in the aftermath of natural disasters such as typhoons and earthquakes, where rapid deployment is critical. Thanks to its wind speed resistance of up to 40 M/s and rated short circuit breaking currents of 25, 31.5, and 40 KA, it ensures safe and stable operation in harsh environments. The mobility of the CZBT1 allows utility companies to quickly relocate power infrastructure to areas experiencing outages or increased load requirements, thus minimizing downtime and enhancing grid resilience.

In addition to emergency scenarios, the Vehicle Mounted Mobile Substation is widely used during planned maintenance or upgrade works on existing substations. Its compact, on-wheels design enables seamless integration into urban or remote locations without the need for extensive site preparation. Construction sites and temporary industrial facilities also benefit from this On Wheels Transformer Station, as it provides reliable power distribution where permanent substations are not yet available.

Moreover, the CZBT1 model supports multiple payment terms including FOB, EXW, and CIF, with a supply ability of 500 sets per year and a delivery time of 50 days per set. The product is shipped in a nude packaging style, with a minimum order quantity of 1 set and pricing available upon request. This combination of technical excellence and logistical flexibility makes the Vehicle Mounted Mobile Substation an essential solution for modern power systems requiring rapid deployment, high performance, and operational versatility.

Customization:

Our Vehicle Mounted Mobile Substation, model number CZBT1, is a highly customizable On Wheels Transformer Station designed to meet various power distribution needs. Manufactured in CHINA and certified under IEC&GB standards, this product ensures reliable performance and compliance with international quality benchmarks.

The main transformer capacity options range from 5 to 50 MVA, including 5, 7.5, 10, 15, 20, 25, 31.5, 40, and 50 MVA, allowing you to select the appropriate power rating for your specific application. The rated voltage of the switch on the LV side is available in multiple levels: 6.6, 11, 13.8, 22, 33, and 35 KV, offering flexibility in integration with existing power systems.

Designed as an On Wheels Transformer Station, this mobile substation can withstand environmental conditions with a solar radiation tolerance of 1000 W/m2 and humidity levels up to 95%. It meets the IEC-60076 product standards, ensuring durability and safety in diverse operational environments.

We offer a minimum order quantity of 1 SET with packaging details as nude to facilitate easy handling and installation. Delivery time is approximately 50 days per set, and payment terms include FOB, EXW, CIF, and others to accommodate your purchasing preferences.

With a supply ability of 500 sets per year, our On Wheels Transformer Station product line is capable of fulfilling large-scale demands efficiently. Contact us to confirm pricing and discuss your specific customization requirements for the Vehicle Mounted Mobile Substation CZBT1.

Support and Services:

Our Mobile Transformer Substation product is designed to provide reliable and efficient power transformation in a compact and portable form. To ensure optimal performance and longevity, we offer comprehensive technical support and services tailored to your needs.

Technical Support:

Our experienced technical team is available to assist with installation guidance, troubleshooting, and maintenance procedures. We provide detailed documentation, including user manuals and operation guides, to help you understand the product features and specifications. For any technical inquiries, our experts are ready to offer prompt and effective solutions.

Maintenance Services:

Regular maintenance is crucial for the dependable operation of the mobile transformer substation. We offer scheduled maintenance services, including inspection, testing, cleaning, and component replacement if necessary. These services help prevent unexpected failures and extend the service life of the unit.

Training and Consultation:

To maximize the benefits of your mobile transformer substation, we provide training sessions for your technical staff on proper handling, safety measures, and routine maintenance. Additionally, our consultants can assist in optimizing the deployment and operation of the substation according to your specific project requirements.

Upgrades and Customization:

We understand that project demands can evolve over time. Therefore, we offer upgrade options and customization services to enhance the functionality and adaptability of the mobile transformer substation, ensuring it meets your changing needs.

Warranty and After-Sales Support:

Our product comes with a comprehensive warranty covering manufacturing defects and performance issues. In addition, our after-sales support team is committed to providing timely assistance and ensuring customer satisfaction throughout the lifecycle of the product.

Choose our Mobile Transformer Substation for a dependable power solution backed by dedicated technical support and professional services.
